CAPACITY:
• 25.000 tons/yr casted
• 15.000 tons/yr machined
PART WEIGHT:
• 10 - 300 kg/pc
FLASK DIMENSIONS:
• 508 x 610 x (200+200) mm
• 700 x 700 x (250+250) mm
• 800 x 900 x (350+350) mm
• 800 x 1100 x (350+350) mm
• 800 x 1500 x (350+350) mm
MATERIAL GRADES:
• GRAY IRON:
o EN-GJL-150 (EN 1561)
o EN-GJL-200 (EN 1561)
o EN-GJL-250 (EN 1561)
o EN-GJL-300 (EN 1561)
• DUCTILE IRON:
o EN-GJS-400-15 (EN 1563)
o EN-GJS-400-18LT (EN 1563)
o EN-GJS-500-7 (EN 1563)
o EN-GJS-600-3 (EN 1563)
o EN-GJS-700-2 (EN 1563)
o EN-GJS-800-2 (EN 1563)
• SOLID SOLUTION STRENGTHENED FERRITIC DUCTILE IRON (SSF):
o EN-GJS-450-18 (EN 1563)
o EN-GJS-500-14 (EN 1563)
o EN-GJS-600-10 (EN 1563)
• AUSTEMPERED DUCTILE IRON (ADI):
o EN-GJS-800-10 (EN 1564)
o EN-GJS-900-8 (EN 1564)
o EN-GJS-1050-6 (EN 1564)
o EN-GJS-1200-3 (EN 1564)
o EN-GJS-1400-1 (EN 1564)
PATTERN SHOP:
• PATTERN & COREBOX PRODUCTION: CNC and Universal Machines
• 3D MODELING: NX (Unigraphics), SolidWorks-SolidCam
• REVERSE ENGINEERING: RapidForm
CASTING METHOD:

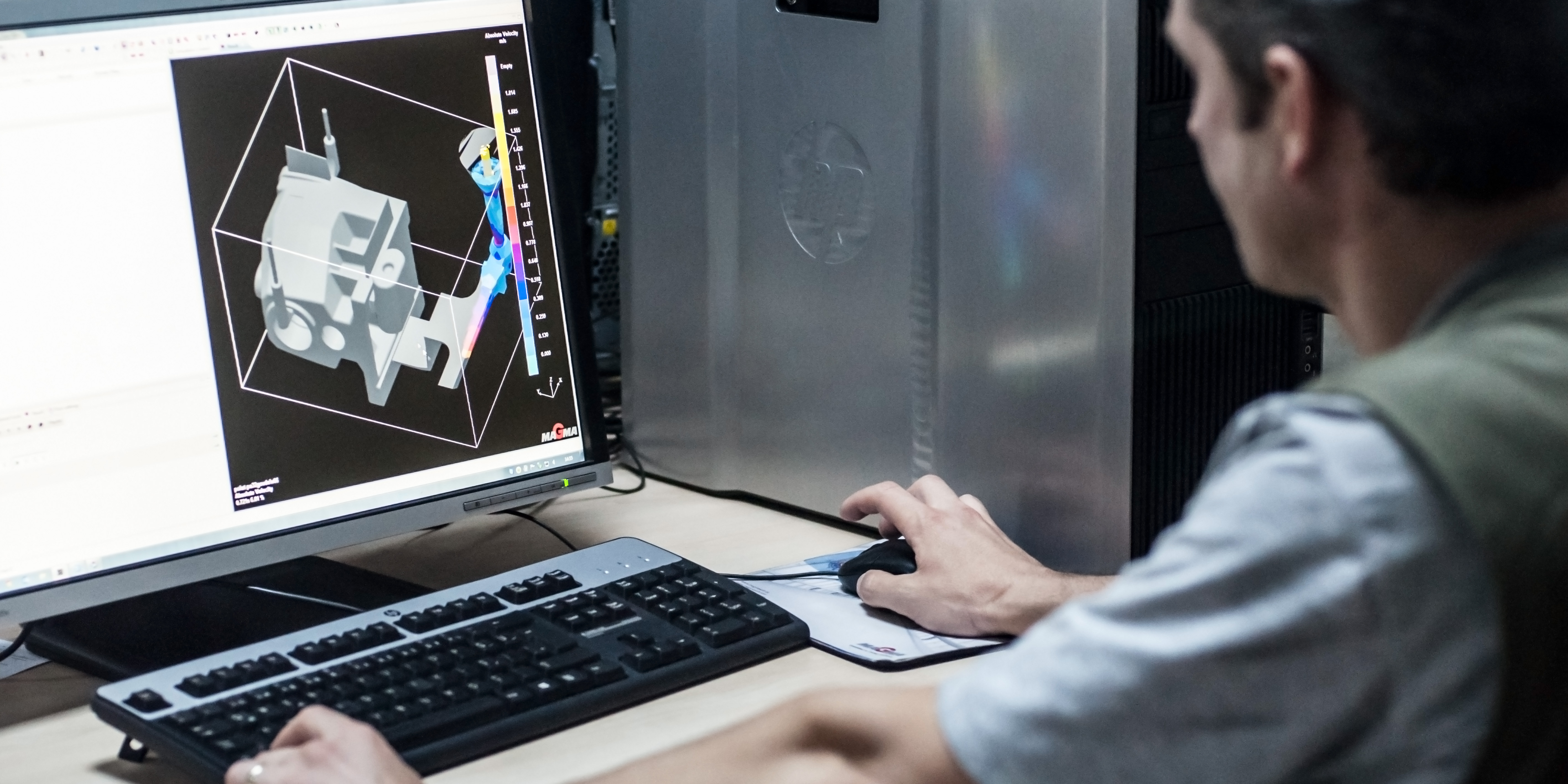

• CASTING SIMULATION: MagmaSoft, Nova Flow & Solid CV, Foundry Technology
• STRESS SIMULATION: MagmaSoft
CORE SHOP:
• 1 x 30 lt Cold Box Core Machine
• 2 x 20 lt Cold Box Core Machine
• 1 x 8 lt cold Box Core Machine
• 1 x Shell Core Machin3
• 1 x 80 lt Cold Box Core Machine
• CORE SIMULATION: MagmaSoft
GRINDING:
• 3 x Grinding Machine with Robot
• 2 x CNC Grinding Machine
MACHINING:
• 21 x Horizontal Machining Center
• 1 x 5-Axis Machining Center
• 2 x Vertical Machining Center
• 4 x c-y-Axis Horizontal Lathe
• 4 x c-Axis Horizontal Lathe
• 6 x x-Axis Vertical Lathe
• 2 x Broaching Machine
• 2 x Flywheel Balancing Machine
• 1 x Slotting Machine
• FIXTURE SHOP
OTHER:
• 2 x PAINTING Station (dipping primer & spray 2K primer+top coat)
• 1 x Induction Hardening & Tempering Machine
• 1 x LEAKAGE TEST Machine
• 3 x WASHING Machines (Continuous, Ultrasonic and Batch-Type)
